Cardiology – Case report:

mitral valve disease in a large breed dog

Summary

This case describes a particular form of mitral regurgitation in a 13 year old large breed dog. This form of valvular insufficiency in large breed dogs is quite different from those described in small breed dogs. Clinical, radiographic and echocardiograpic findings and possible treatments of this particular form are presented and discussed.

Auteur: Dr. E. Bomassi. 28 Sept. 2008.
Centre Hospitalier Vétérinaire des Cordeliers, 29 avenue du Maréchal Joffre, 77100 Meaux.
E-mail: eric.bomassi@wanadoo.fr
Key words: Mitral regurgitation; valvular insufficiency; large breed dog.
This paper originally appeared in: Prat Méd Chir Anim Comp (2007) 42: p 123-130 Presented by AFVAC (France)

Introduction

Mitral endocardiosis  is  a  chronic  degenerative  disease  of  the mitral valvular apparatus. It is characterised by myxoid degeneration with distortion of the free side of the leaflets. This distortion is responsible for deficient functioning of the valve and regurgitation. This leads to left heart insufficiency. This is the most common canine heart disease. Aged male dogs of small breeds are mainly affected [1,2]. However this disease has also been described in large breed dogs [3,4].

This clinical case describes chronic mitral valve disease in a large breed dog.

Clinical case

A 13 year old male Saluki weighing 25kg was presented for lethargy and difficulty breathing of a few days duration. Vaccinations were up to date. Mitral insufficiency had been diagnosed by another veterinarian a year earlier by echocardiography. Enalapril (0.5 mg/kg divided BID) had been given since. Rectal temperature was within normal limits.  Capillary  refill  time  was increased to 4 seconds. There was effort intolerance and symptoms were present even at rest. Respiration was dyspnoeic and the rate was increased (35 breaths per minute). The femoral pulse was thready and a pulse deficit was noted. The heart rate was high (about 180 to 190 beats per minute). Rhythm was irregular.  A  high  intensity  (4/6)  holosystolic  left  sided apical heart murmur was heard. Respiratory sounds were increased; crackles were mostly heard during the end of inspiration.

The main differential diagnosis was congestive cardiac insufficiency with pulmonary oedema, mitral failure, and arrhythmia. Diagnostic tests were performed to evaluate all the symptoms.

Right lateral (figure 1) and dorso-ventral (figure 2) thoracic radiographs revealed bilateral cardiomegaly (Buchanan’s vertebral scale = 13 ; normal = 9.7 +/- 0.5 [5] ; the transverse diameter was more than 2/3 of the total diameter of the thorax).

fig 1

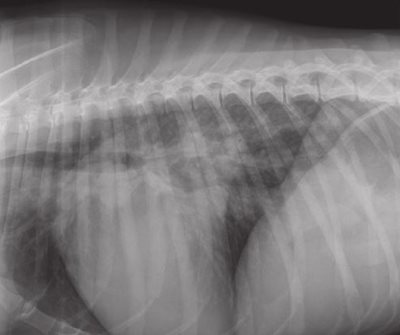

Figure 1: right lateral thoracic radiograph: left-sided cardiomegaly, venous densification, and alveolar pulmonary oedema.

fig 2

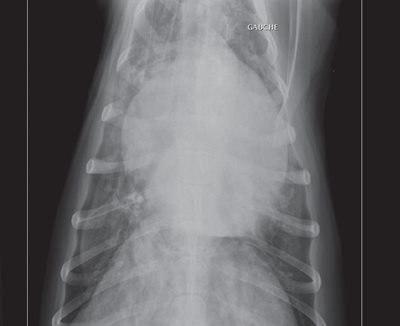

Figure 2: dorso-ventral thoracic radiograph: cardiomegaly and alveolar pulmonary oedema.


The size of the left atrium was particularly increased. The tracheo- vertebral angle was decreased. Pulmonary venous densities were present on the lateral view (figure 1). The pulmonary parenchyma showed interstitial and alveolar densities consistent with  alveolar  pulmonary  oedema  (figures  1  and  2).

These radiographs confirmed the diagnosis of congestive disease with pulmonary oedema.

fig 3

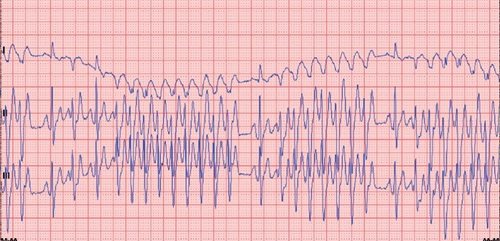

Figure 3: 6-lead electrocardiogram, 25 mm/s, 10 mm/mV: paroxysmal left ventricular extrasystoles.


An  electrocardiogram  (6 Leads,  25  mm/s, 10  mm/mV) (figure 3) revealed an increased and highly irregular heart rate (about 250-260 beats per minute). Electrocardiographic ventricular morphologies were as follows:

  • Sinus supraventricular morphology (normal complexes like complex no 3 for example);
  • Paroxystic right ventricular morphology (enlarged complexes like complex no 2 example);
  • Intermediate morphology (fusion complexes ie. mixed morphology between normal and enlarged complex no 4 for example).

All these changes lead to the  conclusion  of  an  intermittent left ventricular tachycardia (with series of left ventricular extrasystoles).

Fig 4 Echographie 1
Figure 4: echocardiography (two-dimensional mode), right parasternal short axis image, transaortic view: left atrial dilatation.

Fig 5 Echo 2

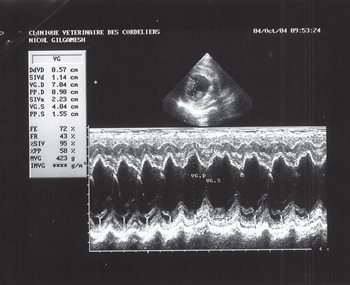

Figure 5: echocardiography (M-mode), right parasternal short axis image, transventricular view: left systolic and diastolic ventricular dilatation.

Fig 6 Echo 3
Figure 6: echocardiography (two-dimensional mode), right parasternal long axis image, four-chamber view: view of the mitral valve during diastole.

Fig 7 Echo 4

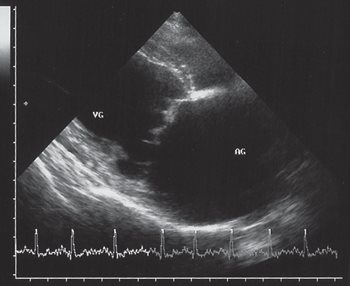

Figure 7: echocardiography (two-dimensional mode), right parasternal long axis image, four-chamber view: view of the mitral valve during systole, minor prolapse.

Fig 8 Echo 5

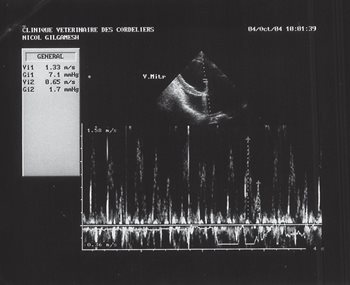

Figure 8: echocardiography (pulsed Doppler mode), left parasternal long axis image, four-chamber view: restrictive transmitral flow.


Echocardiography confirmed severe, mostly left-sided, chamber dilatation. The LA/Ao ratio was increased (figure 4) (LA/Ao = 2.7; normal < 1.6 [6]), as well as the LVEDD/Ao ratio (figure 5) (LVEDD/Ao = 3.1; normal < 1.8 [7]). Ventricular dilatation was also observed in M-mode during systole and diastole (figure 5) (LVEDD  =  7.04  cm;  normal  <  4.4  cm  [8];  LVESD  =  4.04  cm;

normal < 2.9 cm [8]). The free side of the mitral valve leaflet was mildly thickened during diastole (figure 6) and systole (figure  7), and a small prolapse was seen (figure 7). Chordae tendinae were normal.

Transmitral flow was recorded in pulsed-wave Doppler echocardiography (figure 8) and showed a restrictive type (Appleton type 2, Em/Am= 2.04). A high velocity mitral regurgitation flow was recorded (Vmax=4.16m/s). All other flows (aortic, pulmonary and tricuspid) were within normal limits.

A haemotology and chemistry panel (BUN, creatinine, ALT, ALKP, glucose) were within normal limits.

The definitive diagnosis was mitral insufficiency responsible for grade 3a heart failure (ISACHC classification [9]), with alveolar pulmonary oedema and intermittent ventricular tachycardia.

Enalapril was maintained at the same dosage. Since the owners were not willing to leave the dog in the hospital, frusemide 4mg/kg divided BID [10] was prescribed for the pulmonary oedema, mexiletine 5mg/kg divided BID was prescribed for the arrhythmia [11], and pimobendan 0.5mg/kg divided BID was prescribed for its inotropic effect as recommended with at least grade 2 cardiac insufficiency [10,12].

The dog was presented for a recheck 10 days later. Clinical signs were markedly improved. Intolerance was observed only during moderate to marked effort. Heart rate was decreased and the rhythm was more regular. Respiratory signs were within normal limits.

An  electrocardiogram  (6 Leads,  25  mm/s, 10  mm/mV) (figure 10) showed marked improvement in the arrhythmia, with just   a few isolated extrasystoles still being present. Chemistry panel (BUN, creatinine, ALT, ALKP, glucose, Na, K, Cl) was within normal limits. The treatment was maintained and the dose of frusemide was decreased from 4 mg/kg to 2  mg/kg.

Fig 9 Echo 6

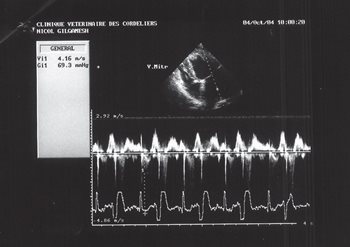

Figure 9: echocardiography (pulsed Doppler mode), left parasternal long axis image, four-chamber view: mitral regurgitation flow.

Fig 10

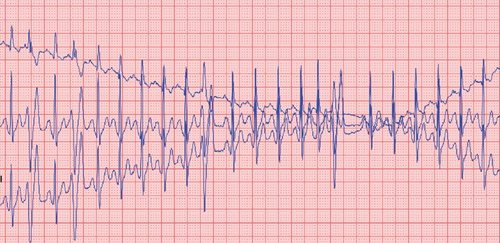

Figure 10: electrocardiogram 6 Leads, 25 mm/s, 10 mm/mV: isolated left ventricular extrasystoles.


A recheck was made over the phone 3 months later and no clinical signs were reported by the owners.

A recheck appointment to include radiographs, electrocardiogram and echocardiography was scheduled for 6 months  later.

Discussion

Chronic mitral valve disease is the most common heart disease in the dog. It mainly affects small breed dogs [1,2],  in which significant morphological changes to of the mitral valve apparatus occur (the free side of the leaflets appears bumpy, thickened and fibrotic; the chordae tendinae and the myocardium are fragile, fibrotic and prone to rupture). This disease is also seen in large breed dogs in which the changes to the mitral apparatus are different [3,4]: morphological anomalies of the mitral apparatus are less marked but there is significant  valvular insufficiency.

This case describes this particular type of chronic mitral valve disease in a large breed dog. Several characteristic anomalies are seen here [3,4,13,14]: the valve is  only  mildly  thickened and the prolapse is minimal but nonetheless associated with severe regurgitation and anatomical changes (atrial and ventricular dilatation). Other findings are less  typical  in  a  large breed dog [13,14], and include a high intensity heart murmur (4/6). The type of ventricular arrhythmia observed in this case is the second most frequent encountered, with atrial fibrillation being more common  [14].

The aetiology of this particular form of mitral disease in large breed dogs has not been clearly identified [13,14]. It could  be a congenital form of mitral dysplasia, or a myocardial insufficiency. There has been no study to date to confirm these hypotheses [13].

The treatment of this form of mitral disease is classic and mainly focuses on treating the cardiac insufficiency, including congestive signs and associated signs (arrhythmias, etc.). The use of pimobendan is subject to discussion. It is currently recommended in the treatment of grade 2 cardiac insufficiency [10,12] (ISACHC classification [9]) but due to its inotropic  action,  it   is   mainly   useful   when   myocardial   insufficiency is present. It is possible that myocardial insufficiency might develop earlier in large breed dogs with mitral disease than in small breed dogs, allowing the use of this drug earlier in the disease process [13,14]. Benefits drawn from its inotropic action would therefore be greater [13,14]. One of the current difficulties is to precisely evaluate myocardial function with echocardiography when mitral regurgitation is present, because the main measuring tools (fractional shortening, systolic intervals, volume index) lack sensitivity [13,14] in this case.

Glossary

LA: left atrium Ao: aorta

LVEDD: left ventricular end diastolic diameter LVESD: left ventricular end systolic diameter

Conclusion

Chronic mitral valve disease in the large breed dog represents a particular form of mitral disease, compared to that described in small breed dogs. The clinical presentation is different, and it is possible that the course and pathophysiology of the two entities are different. More studies are necessary to identify and confirm these findings.

References

[1] BUCHANAN (J.W.) – Causes and prevalence of cardiovascular  disease. In Kirk RW and Bonagura JD ed. Current Veterinary Therapy XI. Philadelphia, WB Saunders. 1992,   647-655

[2] HAGGSTROM  (J.),  PEDERSEN  (H.D.),  KVART  (C.)  –  New insights into degenerative mitral valve disease in dogs. Vet. Clin. North. Am. Small Anim. Pract. 2004, 34(5): 1209-1226

[3] DE MADRON (E.) – Primary acquired mitral insufficiency in adult large breed dog. Proceeding of the 10th ACVIM Forum. 1992, 608-609

[4] DE MADRON (E.) – Unsual aspect of mitral valve disease in the   dog.  Proceeding  of  the  16th ACVIM Forum. 1998, 116-118

[5] BUCHANAN (J.W.), BUCHELER (J.) – Vertebral scale system to measure  canine  heart  size  in  radiographs.  J.  Amer.  Vet.  Med. Assn. 1995, 206: 194-199

[6] RISHNIW (M.), ERB (H.N.) – Evaluation of four 2-dimensional echocardiographic methods of assessing left atrial size in dogs.  J. Vet. Intern. Med. 2000, 14: 429-435

[7] LE BOBINNEC (G.) – Indices  de  ratio  échocardiographiques  en mode TM. In : Proceeding of the 1st International Canine Valvular Disease Symposium. Paris 2004,  30-34

[8] DE MADRON (E.) – L’échocardiographie en mode M chez le chien normal. Thèse Doct. Vet., Alfort,  1983

[9] The International Small Animal Cardiac Heart Council (ISACHC). Recommendations for the diagnosis and the treatment of heart failure in small animals. 1994, 5.

[10] BONAGURA (J.D.) – Cardiovascular Drugs. Proc. 14th ECVIM-CA Congress. September 2004, Barcelona,  Spain

[11] MEURS (K.M.), SPIER (A.W.), WRIGHT (N.A.), ATKINS (C.E.), DEFRANCESCO   (T.C.),   GORDON   (S.G.),   HAMLIN   (R.L.),  KEENE

(B.W.), MILLER (M.W.), MOISE (N.S.) – Comparison of the effects of four antiarrhythmic treatments for familial ventricular arrhythmias in Boxers. J. of Am. Vet. Med. Assoc. 2002, 221(4,):    522-527

[12] LOMBARD (C.) – Veterinary Study for the Confirmation Of Pimobendan in Canine Endocardiosis – results of the vetSCOPE study. In : Proceeding of the 1st International Canine Valvular Disease Symposium. Paris 2004,  67-70

[13]   HAGGSTROM  (J.)  –  Mitral  regurgitation  in  large  dogs.  J. Vet. Cardiol. 2004, 6(2):  6-7

[14]   BORGARELLI   (M.),  ZINI  (E.),  D’AGNOLO   (G.),  TARDUCCI   (A.), SANTILLI (R.A.), CHIAVEGATO (D.), TURSI (M.), PRUNOTTO   (M.), HAGGSTROM (J.) – Comparison of primary mitral valve disease in the German Shepherd dog and in small breeds. J. Vet. Cardiol. 2004,  6(2): 27-3
